8" cone woofer with a 1" soft dome tweeter
| VXS8 | ||
|---|---|---|
| General specifications | ||
| Speaker type | 2-way, Bass-reflex | |
| Frequency range (-10dB) | 51Hz - 20kHz | |
| Nominal coverage | H | 100° |
| V | 100° | |
| Components | LF | 8" Cone |
| HF | 1" Soft dome | |
| Crossover | 2.8kHz | |
| Power rating | NOISE | 90W |
| PGM | 180W | |
| Nominal impedance | 8Ω | |
| Transformer taps | 100V | 60W (170Ω), 30W (330Ω), 15W (670Ω) |
| 70V | 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) | |
| SPL | Sensitivity (1W; 1m on axis) | 91dB SPL |
| Peak (Calculated) | 117dB SPL | |

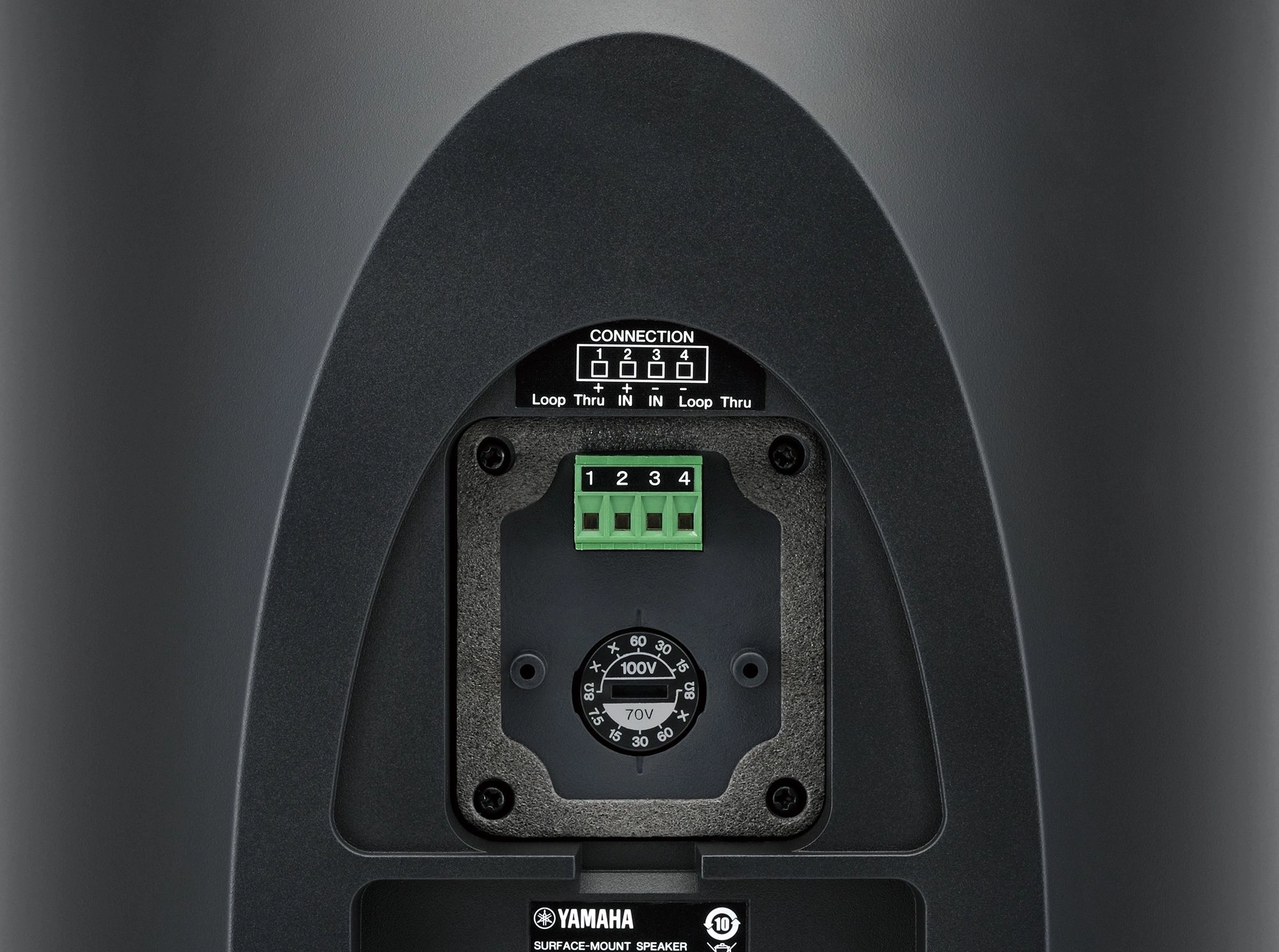

| I/O connectors | 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -) | |
| Shape | Rectangular | |
| Cabinet material | ABS | |
| Finish | VXS8:Black / VXS8W:White | |
| Waterproof | IP35 | |
| Dimensions | W | 278mm (10.9") |
| H | 430mm (16.9") | |
| D | 239mm (9.4") | |
| Net weight | 8.2kg (18.1lbs) | |
| Accessories | Wall / Ceiling mount bracket, Terminal cover | |
| Others | Packaged in pairs | |
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | |
| EN54-24 compliance | - | |
