5.25" cone woofer with a 0.75" soft dome tweeter
| VXS5 / VXS5W | ||
|---|---|---|
| General specifications | ||
| Speaker type | 2-way, Bass-reflex | |
| Frequency range (-10dB) | 62Hz - 20kHz | |
| Nominal coverage | H | 120° |
| V | 120° | |
| Components | LF | 5.25" Cone |
| HF | 0.75" Soft dome | |
| Crossover | 3kHz | |
| Power rating | NOISE | 75W |
| PGM | 150W | |
| Nominal impedance | 8Ω | |
| Transformer taps | 100V | 30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) |
| 70V | 30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) | |
| SPL | Sensitivity (1W; 1m on axis) | 89dB SPL |
| Peak (Calculated) | 114dB SPL | |

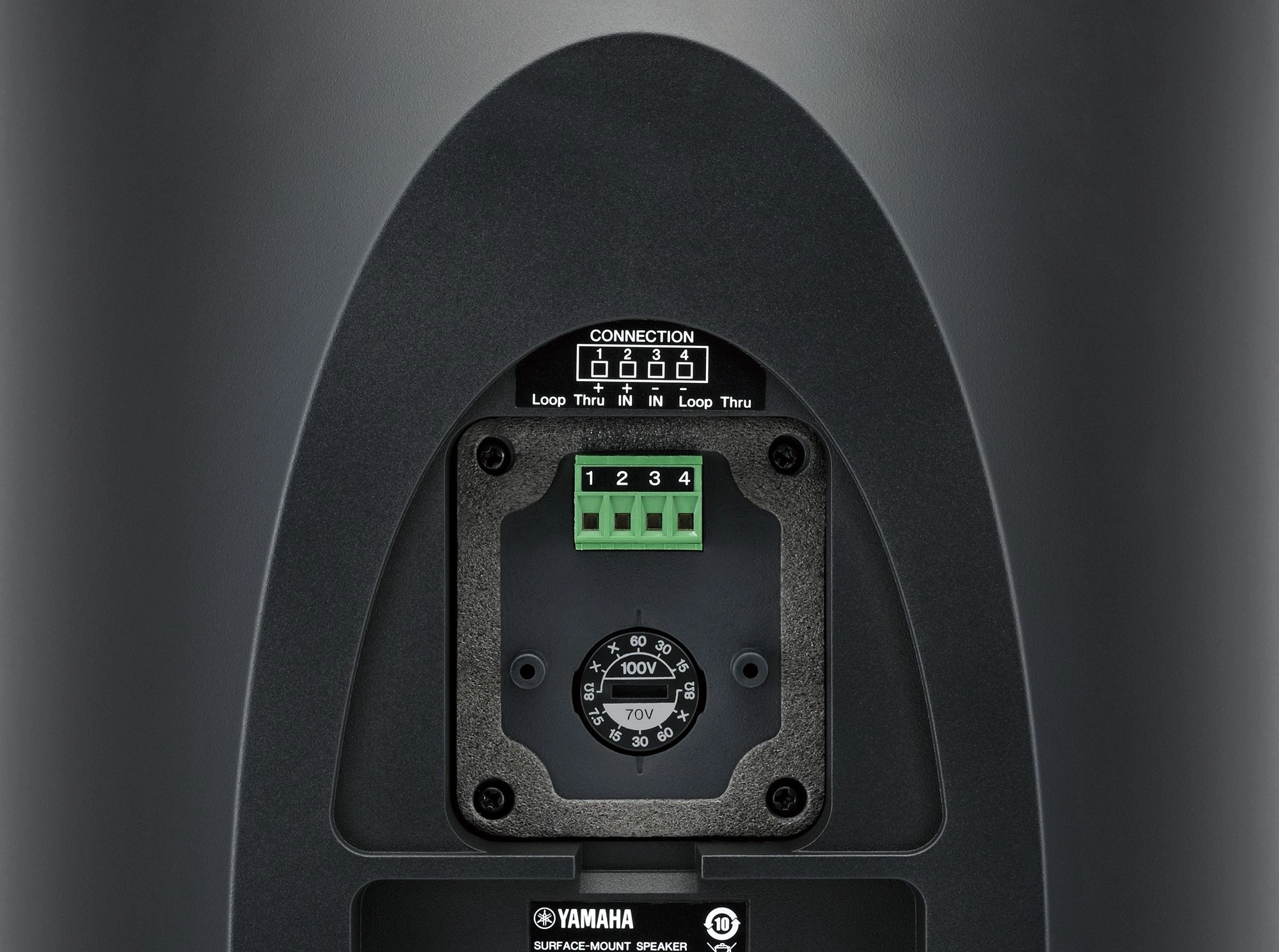

| I/O connectors | 1x Euroblock (4P) (Input: + / -, Loop Thru: + / -) | |
| Shape | Rectangular | |
| Cabinet material | ABS | |
| Finish | VXS5:Black / VXS5W:White | |
| Waterproof | IP35 | |
| Dimensions | W | 176mm (6.9") |
| H | 280mm (11.0") | |
| D | 163mm (6.4") | |
| Net weight | 3.6kg (7.9lbs) | |
| Accessories | Wall / Ceiling mount bracket, Terminal cover | |
| Others | Packaged in pairs | |
| Certificate | UL1480, NFPA70, CE, EAC, RoHS | |
| EN54-24 compliance | - | |
