6.5" cone woofer with a 1" balanced dome tweeter
| VS6 | ||
|---|---|---|
| General specifications | ||
| Frequency range (-10dB) | 80Hz - 20kHz | |
| Nominal coverage | H | 90 |
| V | 90 | |
| Components | LF | 6,5"(160mm) cone driver |
| HF | 1"(25mm) balanced dome tweeter | |
| Crossover | 15kHz | |
| Power rating | NOISE | 25W |
| PGM | 50W | |
| PEAK | 100W | |
| Nominal impedance | 8Ω | |

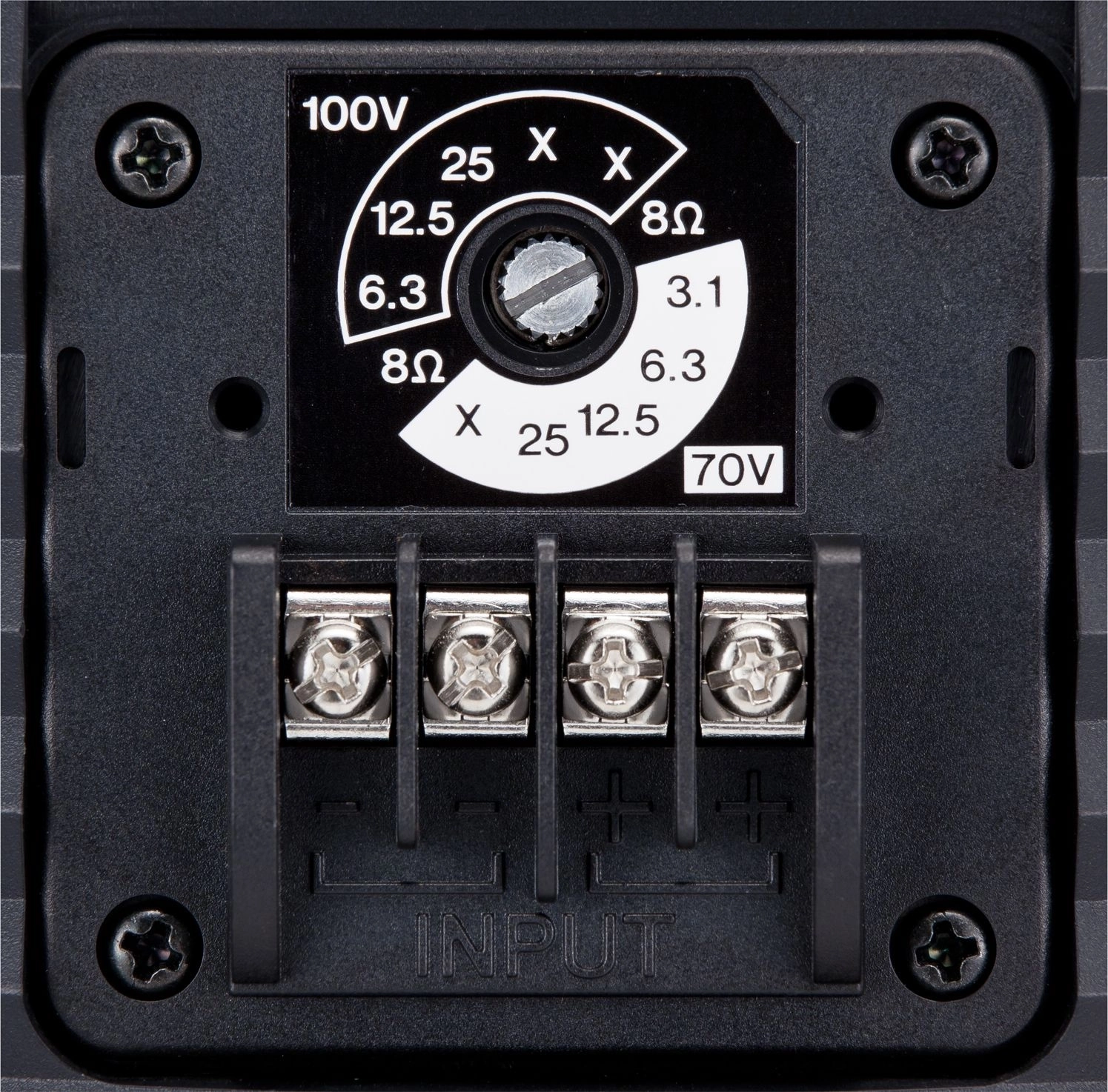

| Transformer taps | 100V | 25W, 12.5W, 6.3W |
| 70V | 25W, 12.5W, 6.3W, 3.1W | |
| SPL | Sensitivity (1W; 1m on axis) | 90dB SPL |
| Peak (Calculated) | 110dB SPL (100W) | |
| I/O connectors | 2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm) | |
| Shape | Rectangular | |
| Cabinet material | HIPS, 94-HB | |
| Finish | VS6: Black, VS6W: White | |
| Flying and mounting hardware | U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes) | |
| Waterproof | IEC60529 IPX3 splash proof rating | |
| Dimensions | W | 190 mm (7 1/2") |
| H | 308 mm (12 1/8") | |
| D | 219 mm (8 5/8") | |
| Net weight | 2.8kg (6.2lbs) | |
| Accessories | U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | |
| Others | Packaged in pair | |
