YAMAHA VS4 Surface Mount Speaker
4" cone woofer with a 1" balanced dome tweeter
| VS4 | ||
|---|---|---|
| General specifications | ||
| Frequency range (-10dB) | 100Hz - 20kHz | |
| Nominal coverage | H | 110 |
| V | 110 | |
| Components | LF | 4"(100mm) cone driver |
| HF | 1"(25mm) balanced dome tweeter | |
| Crossover | 15kHz | |
| Power rating | NOISE | 15W |
| PGM | 30W | |
| PEAK | 60W | |
| Nominal impedance | 8Ω | |

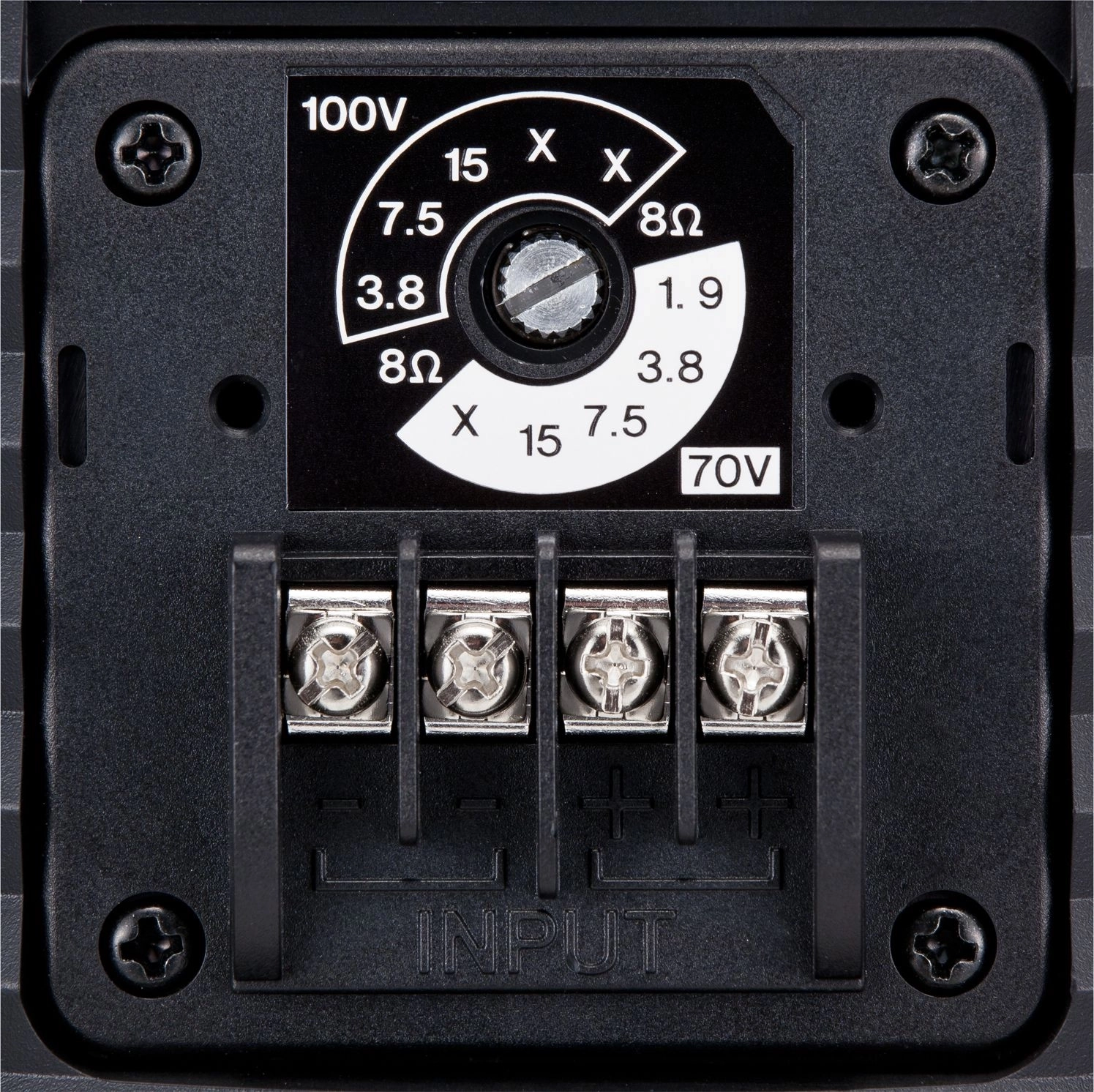

| Transformer taps | 100V | 15W, 7.5W, 3.8W |
| 70V | 15W, 7.5W, 3.8W, 1.9W | |
| SPL | Sensitivity (1W; 1m on axis) | 88dB SPL |
| Peak (Calculated) | 106dB SPL (60W) | |
| I/O connectors | 2 pairs of barrier strip (parallel-wired *Screw size: M3, Terminal Space: 6mm) | |
| Shape | Rectangular | |
| Cabinet material | HIPS, 94-HB | |
| Finish | VS4: Black, VS4W: White | |
| Flying and mounting hardware | U-bracket (4 x Φ5.5mm and 2 x Φ11mm holes) | |
| Waterproof | IEC60529 IPX3 splash proof rating | |
| Dimensions | W | 152 mm (6") |
| H | 243 mm (9 9/16") | |
| D | 172 mm (6 3/4") | |
| Net weight | 1.9kg (4.2lbs) | |
| Accessories | U-bracket, Owner's Manual, Retaining knob, Terminal cover, Terminal cover screw, SPECIFICATIONS | |
| Others | - | |
