Yamaha VC4NW

CallBack Request

2-way system with 4-inch woofer and 0.8-inch tweeter, no back can

Engineered for optimum BGM and voice reproduction
No back can low-profile design allows installation in limited ceiling spaces
Direct support for low-impedance or high-impedance connections
16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
Double-threaded speaker clamp screws for speedy tightening
Paintable grilles with magnetic catches
Black and white versions available
1.4 kg (3.1 lbs), Ø225 x D103 mm (Ø8-7/8” x D4-1/16”)
Single unit package

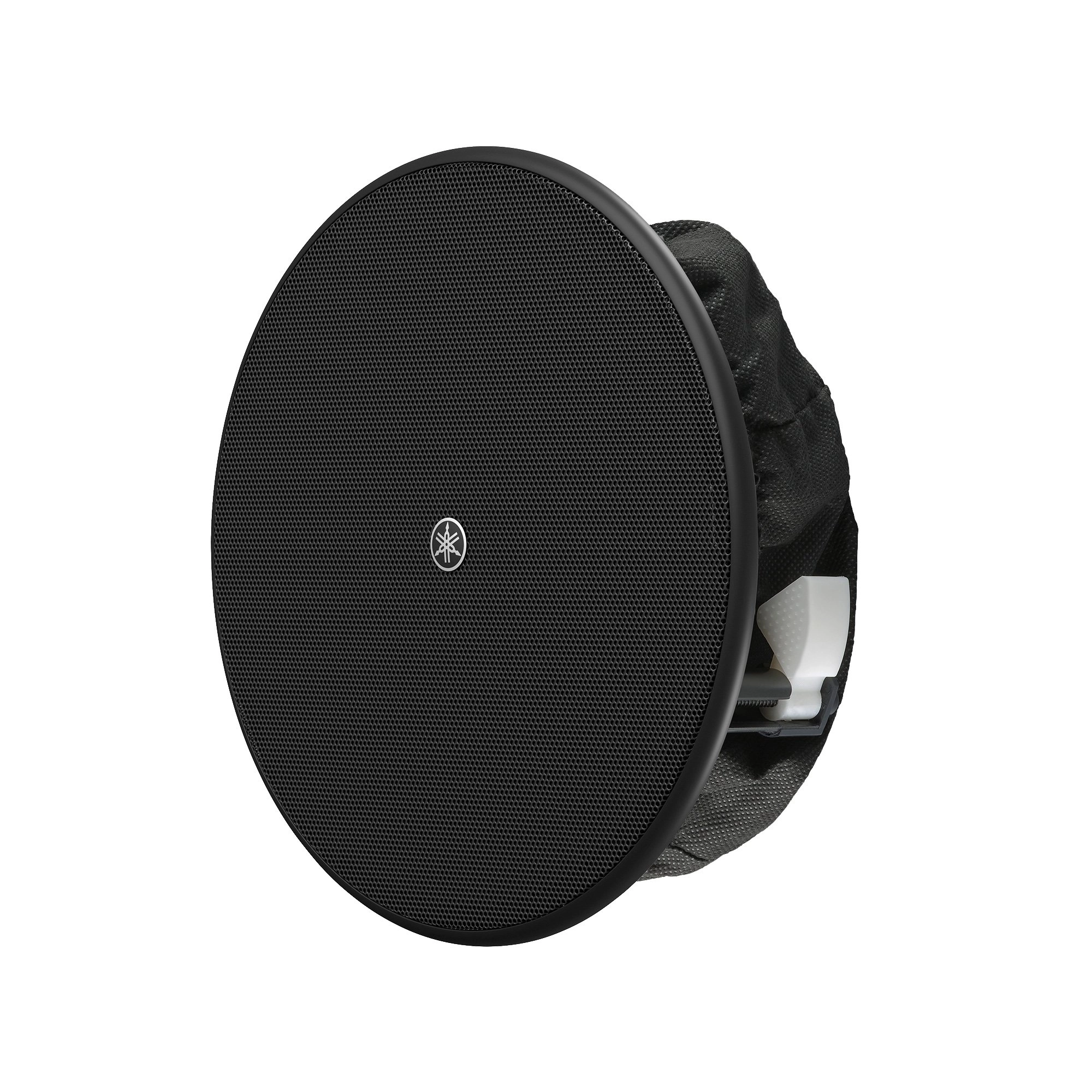

		VC4NB / VC4NW
General specifications
Speaker type		2way Coaxial type (without backcan)
Frequency range (-10dB)		85 Hz – 20 kHz (Half-space: 2π)
Nominal coverage		160° conical (Half-space: 2π)
Components	LF	4” Cone
Components	HF	0.8" Film dome
Power rating	NOISE	15 W
	PGM	30 W
	PEAK	60 W
Nominal impedance		16 Ω
Transformer taps	100V	6 W, 3 W, 1.5 W
Transformer taps	70V	6 W, 3W, 1.5 W, 0.8 W
SPL	Sensitivity (1W; 1m on axis)	88 dB SPL (Half-space: 2π)
SPL	Peak (Calculated)	106 dB SPL (Calculated, 1 m)
I/O connectors		Push terminal (WAGO 294 /2 pin) × 1, Wire size : Solid conductor Min. AWG18 (0.75 sq) / Max. AWG12 (3.5 sq), Standard conductor Min. AWG18 (0.75 sq) / Max. AWG14 (2 sq)
Protection circuit	Load protection	Full-range power limiting to protect network and transducers
Finish		VC4NB: Black (approx. Munsell N3), VC4NW: White (approx. Munsell N9.3)
Dimensions	Diameter	225 mm (8 - 7/8")
Dimensions	D	103 mm (4 - 1/16")
Net weight		1.4 kg (3.1 lbs)
Cutout size		Ø186 mm (Ø7 - 5/16")
Required ceiling board thickness		2 mm – 37 mm
Accessories		Grille, Safety wire, Cutout template, Owner's Manual
Packaging		Single package
Certificate		CE, RoHS
Options		AB-C2: C-ring + Tile Rail kit
