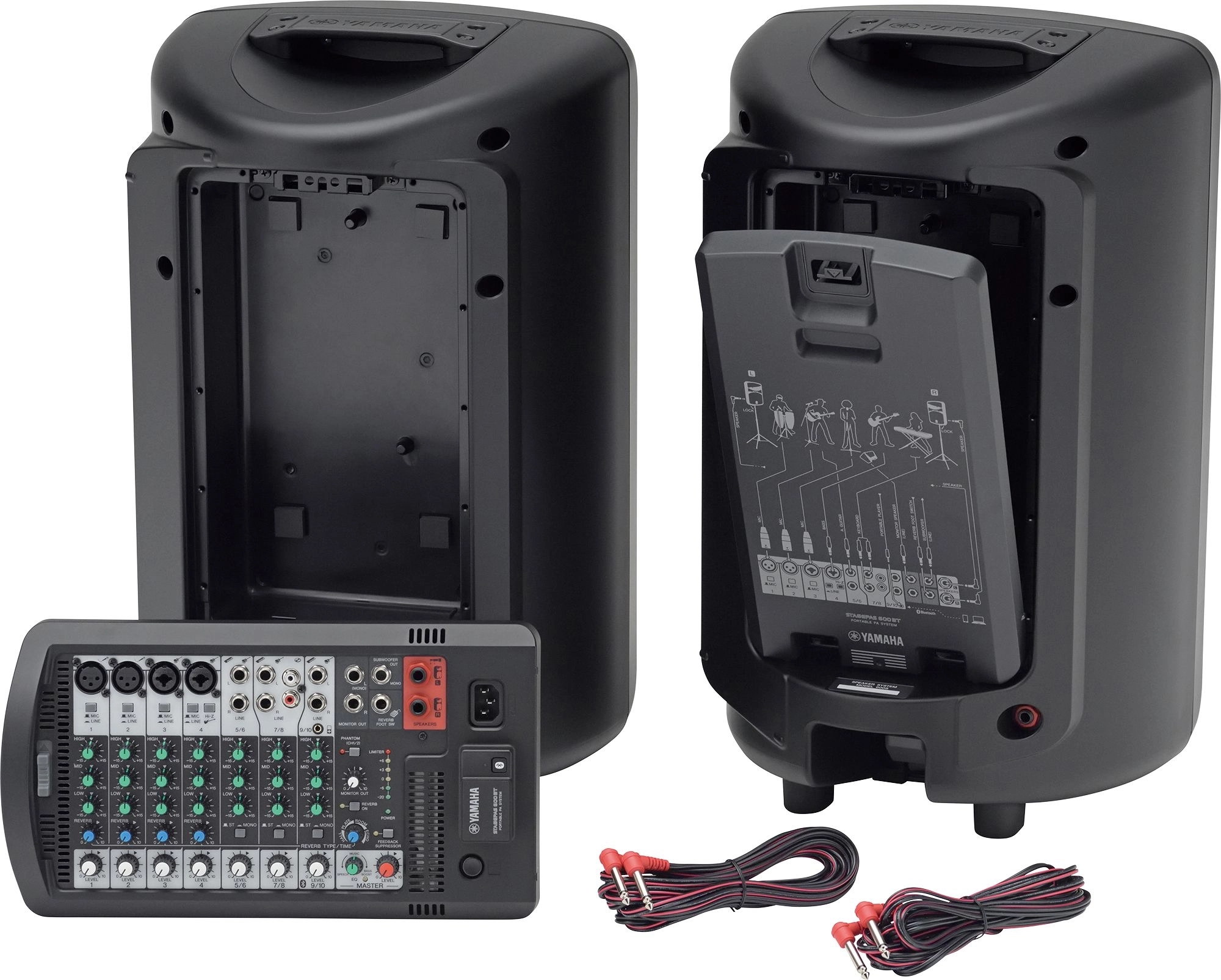

680-watt, portable PA system with 10-channel powered mixer, two 10" speakers, a Bluetooth® input, SPX digital reverbs, an onboard feedback suppressor and versatile EQ.
| STAGEPAS 600BT | ||
|---|---|---|
| Outline | ||
| General specifications | ||
| Type | Powered mixer with 2 passive speakers | |
| Mixing capability | Mixing channels | 10 |
| Input channel functions | Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10 | |
| Output channel functions | Feedback suppressor, 1-Knob Master EQ™ | |
| I/O | Inputs | 4 mono mic / line + 6 mono / 3 stereo line |
| Phantom power | +30V (CH1, 2) | |
| Outputs | SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF | |
| Bluetooth | Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m | |
| Control and others | Reverb foot switch | |
| Input Channel Function | Hi-Z | CH4 |
| EQ HIGH | HIGH Shelving: 8 kHz | |
| EQ LOW | LOW Shelving: 100 Hz | |
| EQ MID | MID peaking: 2.5 kHz | |
| On-board processors | DSP | SPX digital reverb (4 program, parameter control) |
| On-board amplifiers | Maximum output power @4ohms | 680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous) |
| Speaker type | Two-way bass-relfex speakers | |
| Frequency range (-10dB) | 55 Hz - 20 kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Floor Monitor Angle | 50° | |
| Components | LF | 10" (25 cm) cone |
| HF | 1.4" (3.56 cm) voice coil compression driver | |
| Maximum output level (1m; on axis) | 129 dB SPL / speaker | |
| Power requirements | 100 V - 240 V 50 Hz/60 Hz | |
| Power consumption | 35 W (Idle), 100 W (1/8 Power) | |
| Pole socket | 34.8-35.2 mm pole socket with StageLok™ | |
| Accessories | Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties | |
| Options | Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF | |
| Others | Handle: 1 x Top | |
| Dimensions (W x H x D) | Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm | |
| Weight | 25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg) | |
