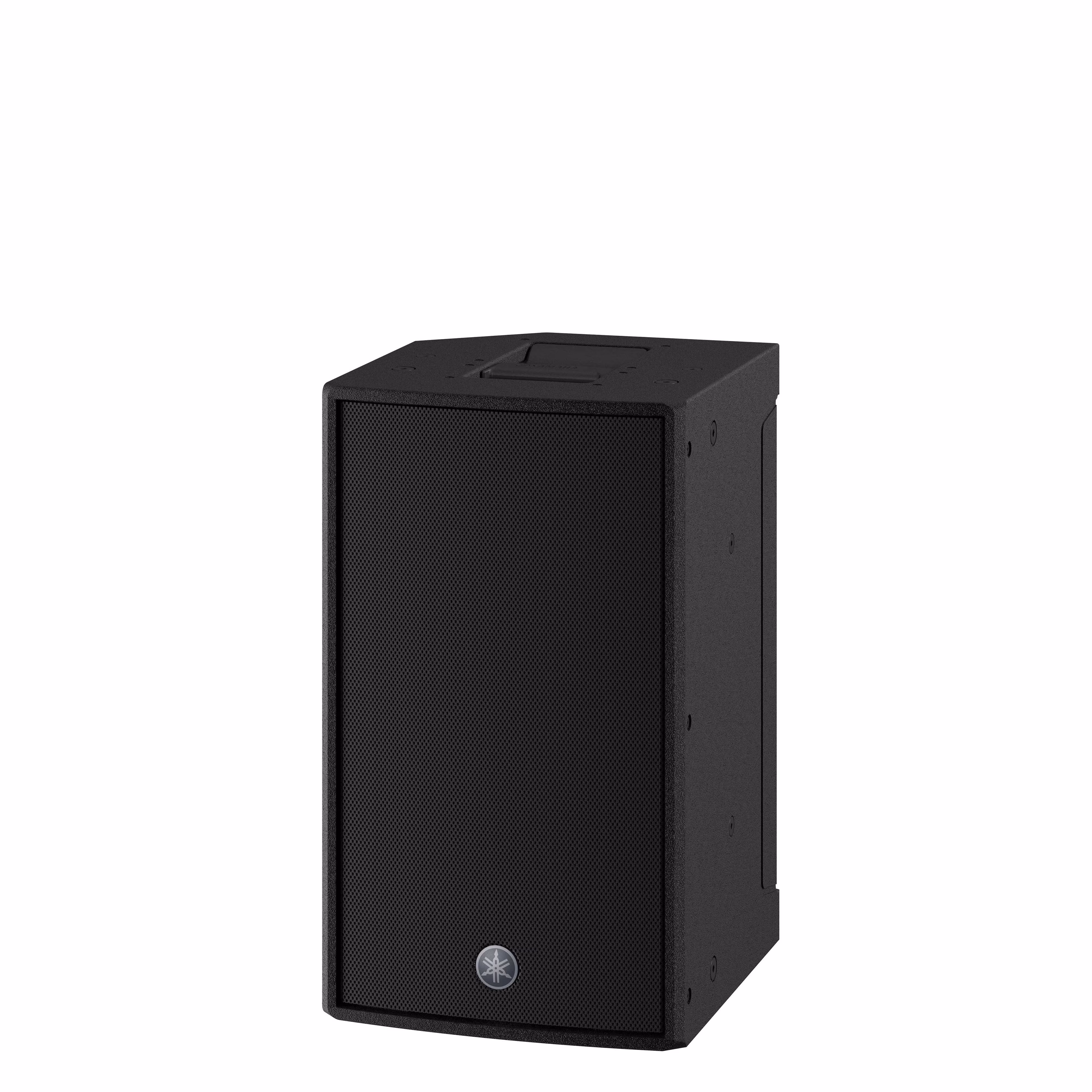

The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.
DZR10 | ||
|---|---|---|
| General specifications | ||
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | |
| Frequency range (-10dB) | 44Hz - 20kHz | |
| Coverage area | H90ﾟ x V60ﾟ (Rotatable) | |
| Components | LF | 10" Cone, 3" Voice Coil, Neodymium magnet |
| MF | - | |
| HF | 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet | |
| Crossover | 1.8kHz (FIR-X) | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 137dB SPL *1 | |
| Power rating | Dynamic | 2000W (LF: 1000W, MF/HF: 1000W) *2 |
| Burst (20ms) | 1100W (LF: 1000W, MF/HF: 100W) | |
| Continuous | 950W (LF: 850W, MF/HF: 100W) | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | |
| Cooling | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | |
| Handle | Aluminium die-cast, Top x1, Side x1 | |
| Rigging | M10 x8, M8 x2 | |
| Dimensions | W | 315 mm (12.4") |
| H | 537 mm (21.1") (with rubber feet) | |
| D | 345 mm (13.6") | |
| Net weight | 17.9kg (39.5lbs) | |
| Options | U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | |
| Floor Monitor Angle | 50° | |
| Pole socket | Φ35 mm x2 (0° or -7°) | |
