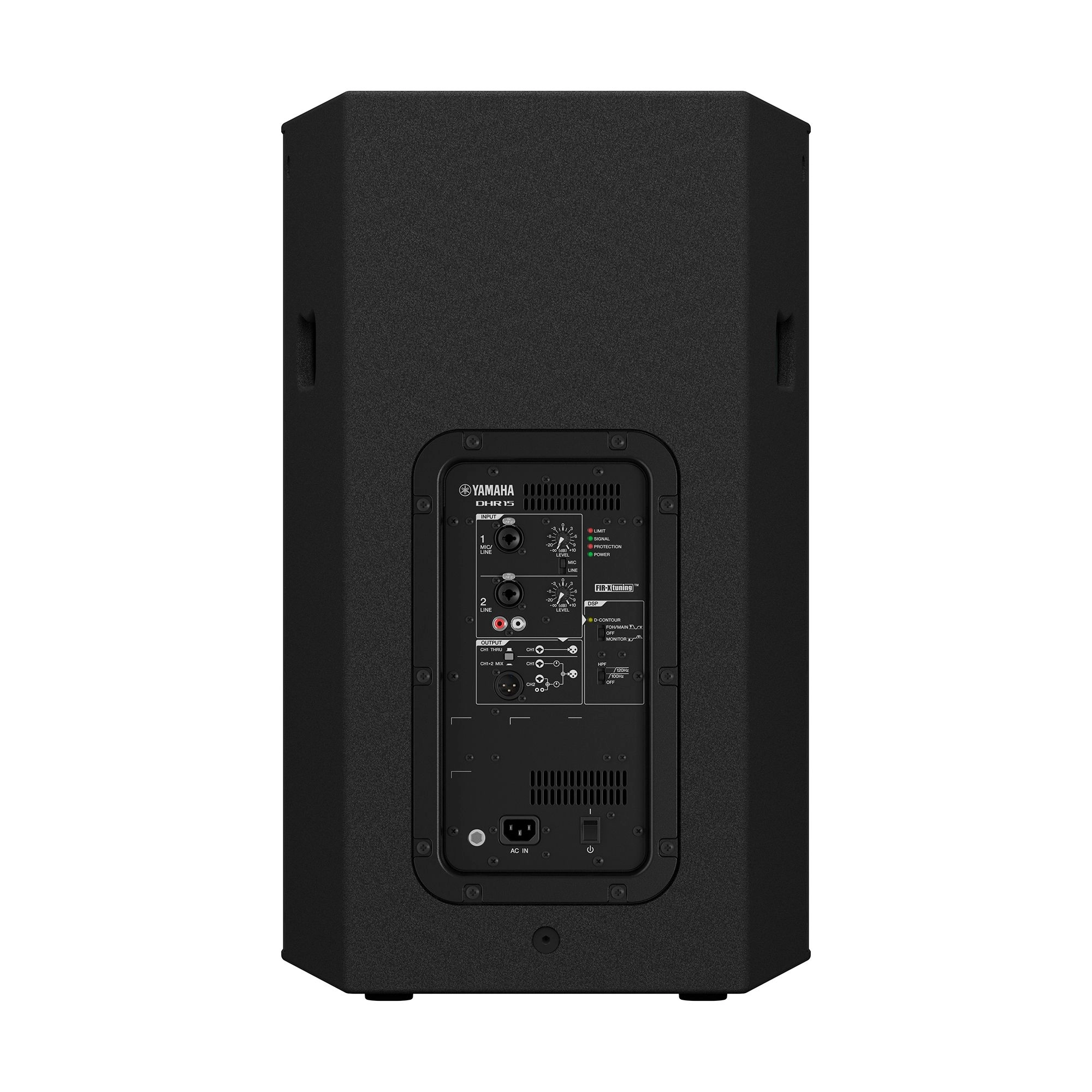

The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.
| General specifications | |
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex |
| Frequency range (-10dB) | 44 Hz - 20 kHz |
| Coverage area | H90 x V60 |
| Crossover | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) |
| Maximum Output Level (Measured peak, IEC noise@1m) | 131 dB SPL |
| Components | |
| LF | Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite |
| HF | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite |
| Amplifier class | Class-D |
| Power rating | |
| Dynamic | 700 W (LF: 500 W, HF: 200 W) *1 |
| Continuous | 465 W (LF: 400 W, HF: 65 W) |
| Cooling | Fan cooling, 4 speeds |
| Power consumption | 74 W (1/8power), 18 W (Idle) |
| Power requirements | 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz |
| A/D D/A Converters | 24 bit 48 kHz Sampling |
| Processors | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) |
| Cabinet material | Plywood |
| Finish | Durable Polyurea Painting, Black |
| Handle | Side x2 |
| Pole socket | F35 mm x2 (Bottom, 0° or -7°) |
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) |
| Floor Monitor Angle | - |
| Dimensions | |
| W | 305 mm (12.0") |
| H | 692 mm (27.2") (with rubber feet) |
| D | 405 mm (15.9") |
| Net weight | 24.0 kg (52.9 lbs) |
