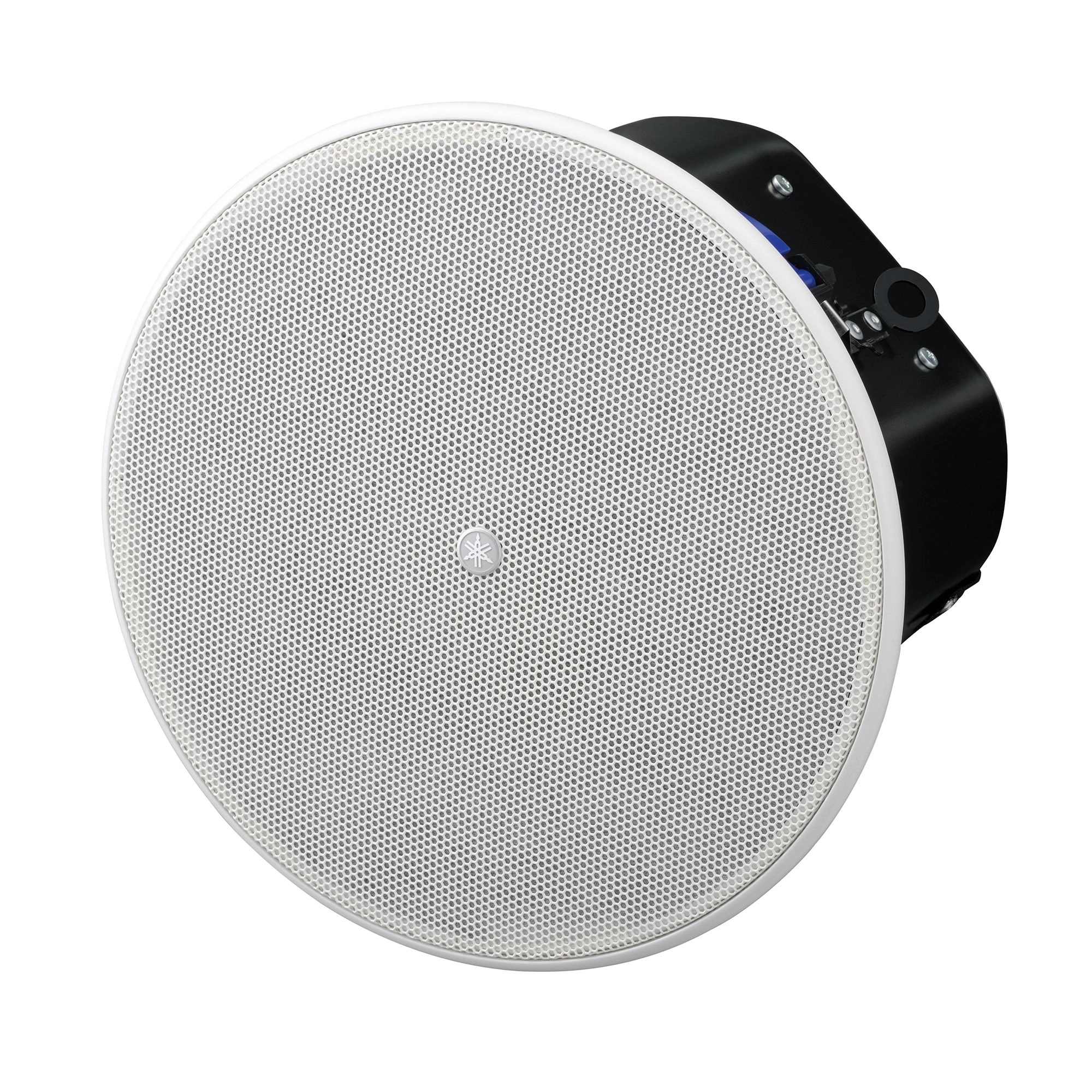

6.5" cone woofer with a 0.75" soft dome tweeter
| VXC6W | ||
|---|---|---|
| General specifications | ||
| Speaker type | 2-way, Acoustic suspension | |
| Frequency range (-10dB) | 56Hz - 20kHz (Half-space:2π) | |
| Nominal coverage | 110° conical (Half-space:2π) | |
| Components | LF | 6.5" Cone |
| HF | 0.75" Soft dome | |
| LF-HF | - | |
| Power rating | NOISE | 75W |
| PGM | 150W | |
| PEAK | 300W | |
| Nominal impedance | 8Ω | |
| Transformer taps | 100V | 60W (170Ω), 30W (330Ω), 15W (670Ω) |
| 70V | 60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω) | |
| SPL | Sensitivity (1W; 1m on axis) | 86dB SPL (Half-space:2π) |
| Peak (Calculated) | 111dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) | |
| I/O connectors | 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -) | |
| Finish | VXC6: Black / VXC6W: White | |
| Dimensions | Diameter | 286mm (11.3") |
| D | 205mm (8.1") | |
| Net weight | 4.4kg (9.7lbs) | |
| Cutout size | Ø247 mm (Ø9 3/4") | |
| Required ceiling board thickness | 5 mm – 35 mm | |
| Accessories | O-ring, Tile Rail, Cutout Template | |
| Packaging | Packaged in pairs | |
| Certificate | UL1480, UL2043, NFPA70, CE, EAC, RoHS | |
| Options | - | |
