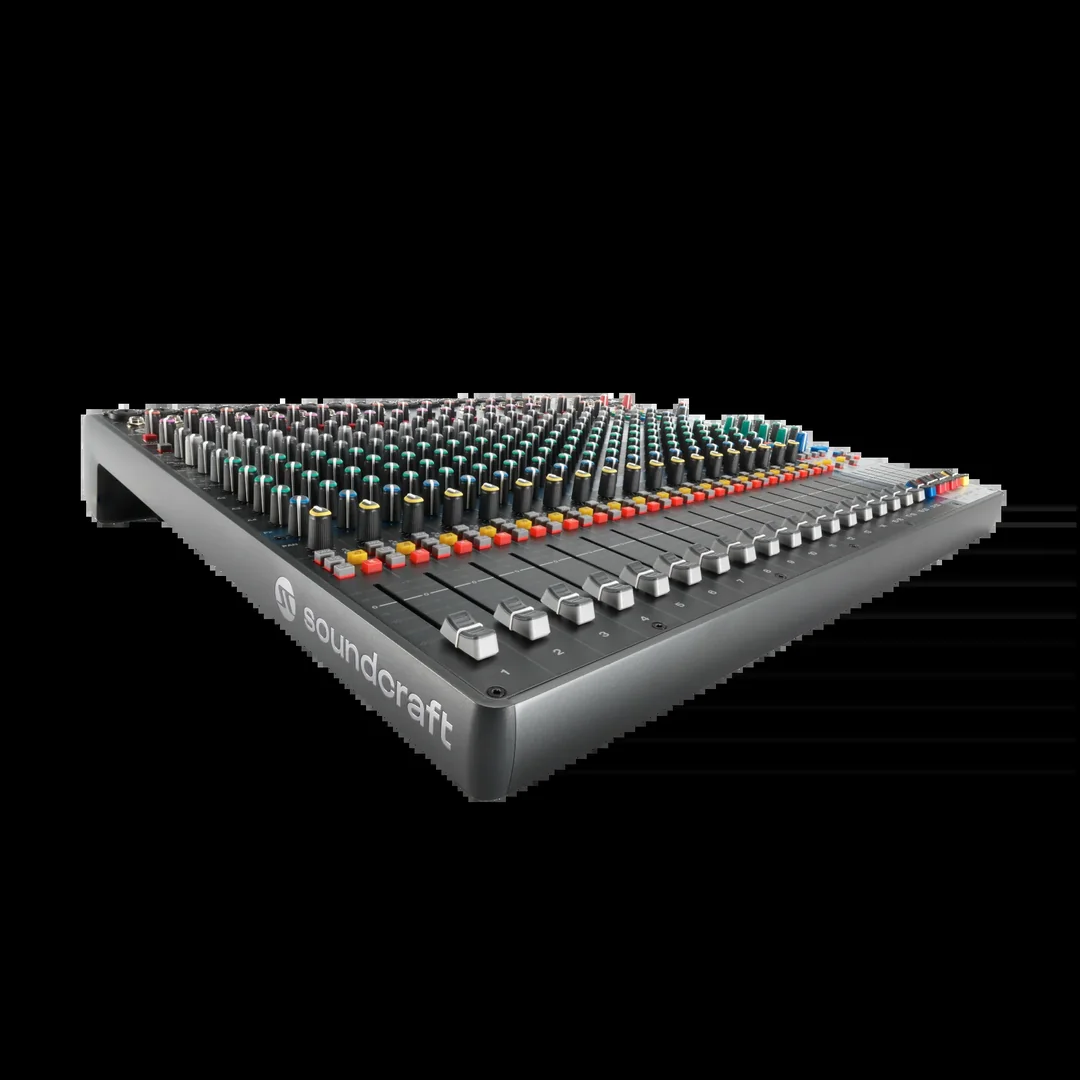

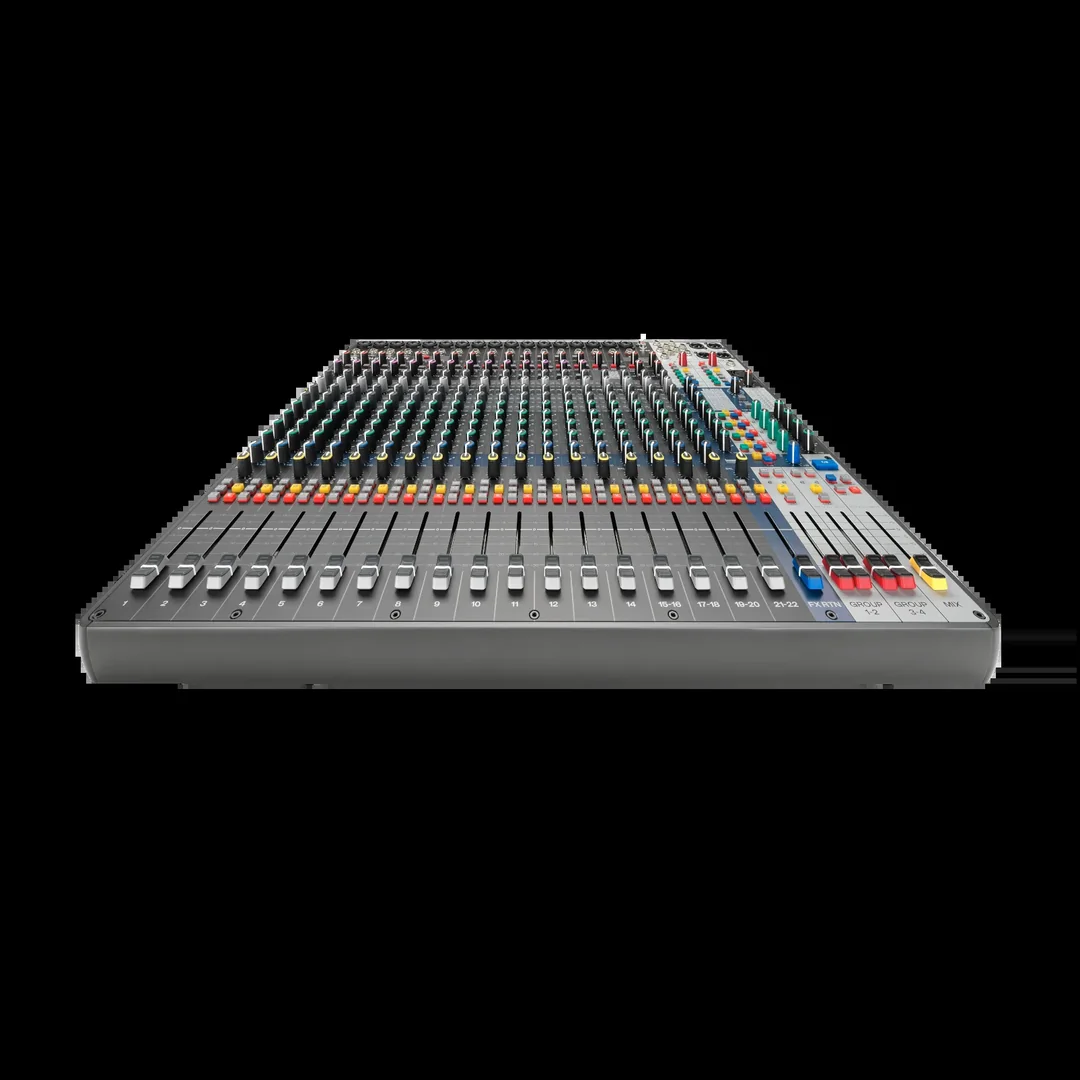

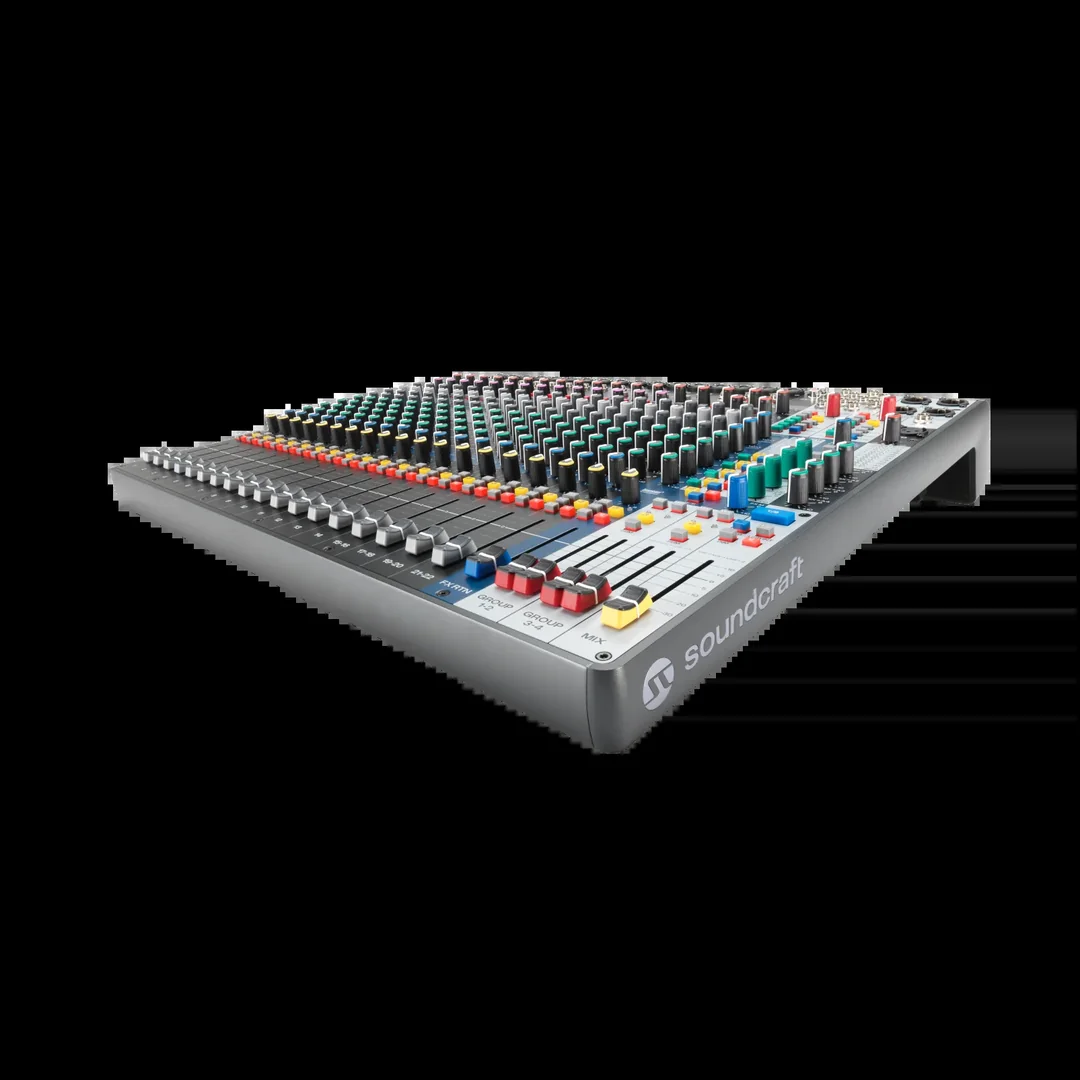

Signature Plus 22 Signature Plus 22 22-Channel Analog Mixer with Lexicon Effects
SCR - SIGPLUS22
₹97000.00
In Stock
- Shipping charges ₹1000.00
- Estimated delivery: 3-5 business days
The Soundcraft Signature Plus 22 is a next-generation console in the Signature Plus Series. It features 22 input channels and delivers professional workflows and flagship features at a competitive price. As an evolution of the acclaimed Soundcraft Signature Series, Signature Plus models integrate consistent performance with an intuitive layout and include color-coded controls and tactile “squircle” knobs for fast adjustments. Premium creative audio quality comes from Ghost mic preamps, Sapphyre EQ, dbx one‑knob compressors, and a Lexicon hardware effects processor with Store and Tap Tempo. Pro flexibility features include SSM (Simple Success Metering), Listen bus and Talkback To, Mix to Auxes, 4x4 USB-C 192kHz interface, and flexible monitoring controls.
Rugged construction and a surface-mounted QR code, linking to training videos, manuals, and support resources, ensure Signature Plus models are ready for any environment. The Signature Plus 22 isn’t just another analog mixing console—it’s a professional-grade creative hub that empowers artists, engineers, and creators to deliver exceptional sound in studios, on stage, and across streaming platforms.
General Specifications
Equivalent Input Noise (EIN) -128dBu - Preamp Gain @ 65dB, A-weighted, AES17 filter (20kHz)
Frequency Response +0.5dB/-1.5dB - Audio band flatness, relative to 1kHz, 20Hz to 20kHz
Frequency Response 15Hz to 80kHz, -3dB cutoff
Residual Noise -90dBu - One channel routed, unity gain, A-weighted
Residual Noise (Rca Channel Only) -78dBu - Channel trim at noon, A-weighted, USB not routed
THD+N <0.005% - 30dB preamp gain, +14dBu at any output, AES17 filter (20kHz)
CMRR >80dB, 30dB preamp gain, -10dBu input level
CROSSTALK -80dB, +30dB preamp gain, +14dBu at output, Measured signal on non-routed output, relative to +14dBu
Aux Send Isolation -75dB, +30dB preamp gain, Relative to +14dBu at aux output with unity gain, Aux pot at minimum, Aux main pot at unity
Sample Rates 44.1kHz, 48kHz, 88.1kHz, 96kHz, 176.2kHz, 196kHz
Full Scale Playback Level +17dBu, USB trim knob at noon, Routed through unity gain channel to MIX
Full Scale Recording Level +20dBu, 0dBFS equivalent level at MIX output
Dynamic Range, Playback 94dB
Dynamic Range, Recording 107dB
THD+N, Playback <0.01%, -0.5 dBFS playback level, Adjust USB trim to get +14dBu at any output
THD+N, Recording <0.005%, Input to mono channel, Preamp gain 30dB, Route to MIX and Group 3-4, Adjust channel fader to reach -1dBFS
Dimensions
Box Dimensions 732 x 655 x 213 mm, (28.8 x 25.78 x 8.38 in)
Weight, in box with accessories 15.9 kg (35.05 lbs)
Product Dimensions 560 x 535 x 106 mm (22.05 x 21.06 x 4.17 in)
Weight, bare product 9.7 kg (21.38 lbs)
Power Supply Worldwide
